Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
Ball detent design.
Made of heat-treated alloy steel.
Side locking hole.
Proto J5552 Specifications
SIZE
1-5/8"
NUT END OUTSIDE DIAMETER
2-15/64"
DRIVE END OUTSIDE DIAMETER
1-3/4"
NUT DEPTH
1-7/64"
BOLT CLEARANCE DEPTH
1-15/16"
OVERALL LENGTH
2-5/8"
WEIGHT
1.03 lbs
DRIVE SIZE
3/4"
POINT SIZE
12
FINISH
Satin
LENGTH TYPE
Standard
UNIT OF MEASURE
Fractional
SPECIFICATION ASME
ASME B107.110-2012
SPECIFICATION AS
SAE AS4984A
$32.46

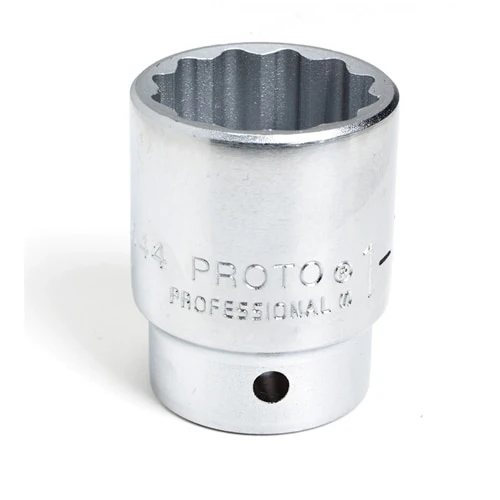

Proto J5552 3/4" Drive Socket 1-5/8" - 12 Point—
$32.46
Description
Proto J5552 Includes
(1) 3/4" DRIVE SOCKET 1-5/8" - 12 POINT
Proto J5552 Features
Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
Ball detent design.
Made of heat-treated alloy steel.
Side locking hole.
Proto J5552 Specifications
SIZE
1-5/8"
NUT END OUTSIDE DIAMETER
2-15/64"
DRIVE END OUTSIDE DIAMETER
1-3/4"
NUT DEPTH
1-7/64"
BOLT CLEARANCE DEPTH
1-15/16"
OVERALL LENGTH
2-5/8"
WEIGHT
1.03 lbs
DRIVE SIZE
3/4"
POINT SIZE
12
FINISH
Satin
LENGTH TYPE
Standard
UNIT OF MEASURE
Fractional
SPECIFICATION ASME
ASME B107.110-2012
SPECIFICATION AS
SAE AS4984A
$32.46
Proto J5552 3/4" Drive Socket 1-5/8" - 12 Point—
$32.46
