Proto® 6 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
Proto J5436H Specifications
SIZE
1-1/8"
NUT END OUTSIDE DIAMETER
1-31/64"
DRIVE END OUTSIDE DIAMETER
1-31/64"
NUT DEPTH
59/64"
BOLT CLEARANCE DEPTH
25/32"
OVERALL LENGTH
1-3/4"
WEIGHT
0.47 lbs
DRIVE SIZE
1/2"
POINT SIZE
6
FINISH
Black Oxide
LENGTH TYPE
Standard
UNIT OF MEASURE
Fractional
SPECIFICATION ASME
ASME B107.110-2012
SPECIFICATION AS
SAE AS4984A
$11.70

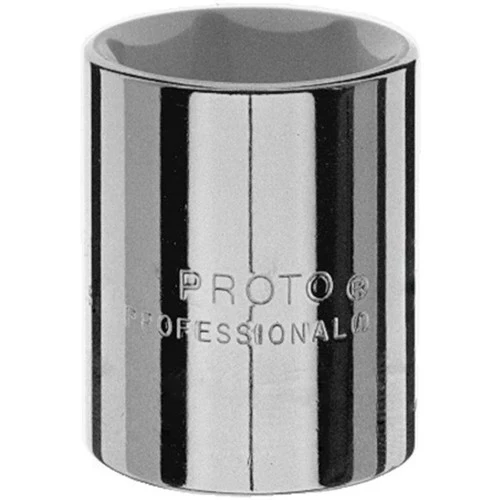

Proto J5436H 1/2" Drive Socket 1-1/8" - 6 Point—
$11.70
Description
Proto J5436H Includes
(1) 1/2" DRIVE SOCKET 1-1/8" - 6 POINT
Proto J5436H Features
Proto® 6 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
